This helpful guide to compression adapters breaks down how they link tubing and small-diameter pipes for reliable plumbing. It is intended for homeowners, trade installers, and customers searching for the right parts at Installation Parts Supply.

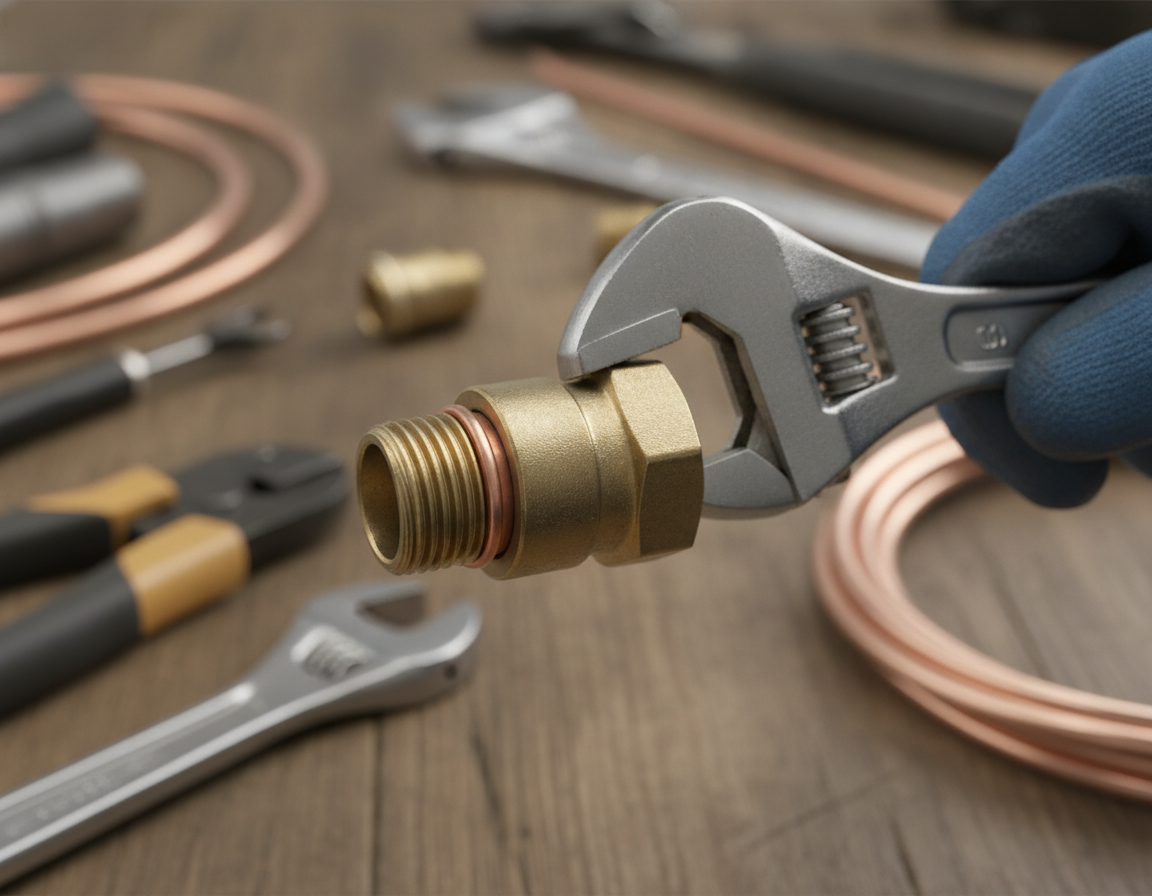

1/2 Inch Female To 3/8 Male Adapter
Compression adapters work by tightening a ferrule against the pipe and fitting body, creating a leak-tight seal. These fittings appear in domestic, commercial, and heavy-duty plumbing applications because they are simple.
The article walks through the main types, dimensions, materials, and recommended installation habits. It also explains troubleshooting and application use cases. It highlights the importance of converting between 3/8 and 1/2 in. sizes and matching thread types such as NPT versus compression. Durability is reinforced with brass, copper, or stainless steel options.
Always use the manufacturer’s tightening and turn specifications. Use tubing inserts for soft tubing like PEX when required. Avoid mixing ferrules or fitting bodies from different brands to reduce leaks and galling.
Important Takeaways
- Compression adapters create seals by compressing a ferrule onto the tubing.
- Common sizes and materials for many plumbing tasks are available through Installation Parts Supply.
- Select materials—brass, copper, or stainless—based on pressure and environment.
- Match thread types and sizes precisely when converting between 3/8 and 1/2 in. fittings.
- Follow manufacturer torque guidance and use inserts when working with soft tubing.
Compression Adapters And Compression Fittings Explained
A compression adapter connects tubing by mechanically compressing a ferrule around the tube’s outside diameter. Unlike threaded connectors or push-fit fittings, these parts seal through ferrule compression rather than thread engagement or grab rings. Its seal is created by controlled metal deformation instead of mated threads or internal retention clips.
The sections below explain each component and how the pieces interact.
What Is A Compression Adapter And How It Differs From Other Fittings
A compression adapter is a type of compression fitting used to couple pipes or tubes without soldering. As the compression nut is secured, it pushes the ferrule into the tapered fitting body. That approach is different from threaded joints, which depend on matched threads and thread sealant. It also differs from push-fit vs compression options, where push-fit uses elastomeric seals and retention clips for quick assembly.
Key Parts: Nut, Ferrule Olive, And Fitting Body
The main pieces are the nut, the compression ferrule, and the fitting body. The nut provides the axial force needed for sealing. The ferrule, sometimes called an olive, reshapes to bite into the tubing. Inside the fitting body, a tapered bore seats the ferrule into its sealing position.
Certain designs add a rear ferrule that spreads seal stress and makes disassembly easier.
How Compression Adapters Form A Leak-Tight Seal
Tightening the compression nut moves the ferrule into the fitting body’s taper. This radial compression presses the ferrule against the tubing and forms a line-contact seal. When the ferrule is correctly positioned, the joint helps stop leaks under normal pressure and temperature conditions.
Compression joints and compression fittings suit copper, brass, stainless steel, and many hard plastics. Before assembly, installers should check tubing compatibility and follow the maker’s torque or turn-count guidance.
| Part | Purpose | Primary Advantage |
|---|---|---|
| Compression tightening nut | Provides axial force that seats the ferrule | Repeatable tightening and easier rework |
| Sealing ferrule | Deforms to grip tubing | Metal-to-tube seal for pressure resistance |
| Fitting body | Receives ferrule in a tapered bore | Consistent alignment and a stable sealing surface |
| Optional rear ferrule | Helps control front ferrule sealing force | Improved reassembly with less tube damage |
Common Compression Adapter Sizes And Type Conversions
Switching between 1/2-inch and 3/8-inch tubing is a regular task. Choosing the correct reducer or adapter is important. The right part fits tubing OD, thread style, and fitting gender. Choosing the correct part avoids leaks, extra fittings, and unnecessary labor.
Half inch to three eighths adapter choices
For supply-line jobs, parts such as the 1 2 To 3 8 Reducer and Half Inch To Three Eighths Adaptor are regularly used. These fittings step down a 1/2-inch supply feed to a 3/8-inch inlet. These parts are offered as single-piece reducers and two-piece compression adapters. The design maintains a continuous tube seal. Always check if the listed sizes refer to tubing OD or nominal pipe size before making a purchase.
Adapters and reducers with differing genders
The gender of the fittings is essential for proper mating. A 1/2 Female To 3/8 Male Adapter is needed when the mating part has a male thread. For the reverse arrangement, installers often use a 3/8 Female To 1/2 Male Adapter. Mixed systems may also require configurations such as 1/2 Male To 3/8 Female Adapter or 1/2 Male To 3/8 Male Adapter.
Compression seal and NPT conversion options
Compression-to-compression parts, such as 1/2 Compression To 3/8 Compression adapters, continue a continuous compression seal. When connecting to threaded pipe systems, choose a 1/2 Compression To 3/8 NPT or a similar conversion fitting. When connecting to NPT, apply the correct thread sealant or PTFE tape to ensure a pressure-tight joint.
- Review descriptions such as 1 2 X 3 8 Compression Adapter or 3/8 X 1/2 Adapter to confirm OD versus nominal size.
- Confirm thread pitch and gender before cutting or buying replacement parts.
- Use trusted suppliers such as Mueller, Parker, or Watts to lower the risk of incompatible parts.
Materials And Compatibility For Reliable Connections
The choice of materials directly influences the longevity of a joint. The fitting material should be matched according to tubing material, working pressure, and fluid type. That matching process helps produce a connection that resists leaks, corrosion, and galling. For corrosive, high-purity, or demanding systems, a 3 8 Male To 1 2 Female Stainless Steel fitting is often a preferred choice.
For many applications, the main material choices are brass, copper, and stainless steel. Brass adapters generally work well in potable-water and general plumbing systems. Copper fittings are often chosen with copper tubing and soldered pipe runs. Stainless steel provides strong corrosion resistance and durability for high-pressure, chemical, or aggressive environments.
Compression joints perform best with hard tubing like copper, stainless steel, nylon, and PEEK. Soft tubing, such as PEX, can also be used with the support of tubing inserts. These inserts reduce the risk of the tube from collapsing and ensure the ferrule bites properly.
PTFE tubing is resistant to many chemicals and flexible but prone to PTFE cold flow under clamped loads. To mitigate this, use fittings with redundant seals, internal O-rings, or back-up devices. When PTFE is used in compression joints, check the connection periodically for deformation or seepage.
Ferrule selection is central to a reliable compression seal. Metal ferrules in brass or stainless steel provide stability across a wide temperature range. One-piece ferrules may be suitable for softer tubing applications. Two-piece ferrule systems allow more control and can reduce galling by separating the front-ferrule and rear-ferrule functions.
Cone-profile asymmetrical ferrules can support consistent seals in precision assemblies. They control orientation. Symmetrical ferrules are more straightforward to assemble but may shift on hard plastics. Select ferrule geometry according to tube stiffness, pressure, temperature, and service requirements.
When selecting materials, consider the pressure, temperature, and media involved. For high-pressure, high-purity, or aggressive fluids, stainless components and compatible ferrules are recommended. For routine domestic plumbing, a brass compression adapter or copper compression fitting offers a balance between cost and performance.
Installation Best Practices And Common Mistakes
A reliable installation depends on clean, square-cut tubing and correctly matched components. Following best practices helps reduce leaks, callbacks, and unnecessary rework. A simple pre-assembly checklist can avoid wasted fittings and tubing.
Preparing Pipe Ends: Cutting, Deburring, And Cleaning
Use a quality cutter to make clean, square tubing cuts. Uneven cuts lead to leaks. A deburring tool removes burrs, sharp edges, and metal fragments.
Wipe the tube ends with a lint-free cloth so oil, dirt, and metal dust are removed. For soft tubing like PEX, install a rigid insert sized to the tubing ID. This enables the ferrule to seat properly. These steps—cutting, deburring, and cleaning—are essential for a reliable seal.
Correct Tightening: Turn Counts, Torque, And Over-Tightening Risks
After reaching finger-tight, follow the manufacturer’s recommended number of turns. Counting turns aligns compression with ferrule geometry better than torque readings. Thread pitch is mechanically linked to how much the ferrule compresses.
Do not over-tighten, because excessive force can flatten the ferrule, widen the contact area, and cause leaks. With stainless fittings, use controlled torque to reduce galling. Use isopropyl alcohol as a temporary aid only if permitted by the maker.
Disassembly, Reassembly Limits, And When To Replace Ferrules
Most compression fittings can be taken apart a limited number of times. Ferrules often swage onto tubing after the first installation and may not reseal correctly if reused. Inspect the ferrule for deformation if you remove a fitting.
Ferrules with work-hardening should be replaced. If the fitting has been repeatedly assembled and removed, replace the ferrule and consider replacing the fitting body to restore a leak-tight joint.
Common mistakes include mixing components from different manufacturers, neglecting to use inserts on soft tubing, mismatching compression and NPT threads, and ignoring cutting, deburring, and cleaning. Correcting these problems reduces call-backs and extends long-term system performance.
Finding The Right Adapter: Keyword-Focused Selection Guide
Choosing the right adapter begins with precise search terms and a thorough part description review. Utilize specific phrases to find the exact match, preventing the need for returns. Common search terms include 3/8Th To 1/2 Adapter and 1 2 X 3 8 Compression Adapter for swift results.
Key details to look for in descriptions are gender, diameter, and thread type. Listings such as 1/2 Female To 3/8 Male Adapter or 1 2 To 3 8 Compression Adapter signal which side accepts tubing or pipe. Always verify whether the diameter refers to tubing OD or nominal pipe size.
Utilizing search variants is important when suppliers employ different naming conventions. Try 3/8 X 1/2 Adapter, 3 8 To 1 2 Compression Adapter, or 3/8Th To 1/2 Adapter to find compatible parts across various catalogs. Suppliers such as Installation Parts Supply and Grainger may list the same fitting under several names.
Adapter orientation should line up with the mating parts. A male-to-female piece, such as 1 2 Male To 3 8 Female Adapter, is appropriate for connecting a rigid run to a hose or supply line. Female-to-female adapters are used when two male-threaded parts need to be joined.
Be cautious of hybrid fittings that combine different thread types. A 1/2 Compression To 3/8 NPT or 1/2 Female Compression To 1/2 Male NPT fitting places a compression connection on one end and pipe thread on the other. Use thread sealant only as recommended by the manufacturer.
Material selection is important for corrosion resistance and compatibility. Brass and stainless steel are common options. Check compatibility with copper, PEX, or PTFE tubing, and avoid galvanic corrosion when different metals are mixed.
In cases of uncertainty, verify part numbers and examine photos. Incorporating keywords like 3/8Th To 1/2 Adapter, 1 2 X 3 8 Compression Adapter, 1/2 Female To 3/8 Male Adapter, 1 2 To 3 8 Compression Adapter, 3 8 To 1 2 Compression Adapter, and 3/8 X 1/2 Adapter in searches can expedite the process of finding the correct match.
Finding And Fixing Compression Fitting Leaks
Leaks and pressure loss in compression connections require a prompt, systematic approach. Begin with a visual inspection, then conduct simple tests to pinpoint the issue. Always prioritize safety when working with live systems.
Common Causes To Diagnose
Begin by examining the ferrule for gaps, uneven marks, or poor seating. Check for damaged or cross-threaded nuts. Confirm that the tubing is square-cut and fully inserted into the fitting. Make sure the adapter type matches the system so thread mismatches are avoided.
Step-By-Step Diagnostic Checks
- Visually confirm ferrule seating and nut engagement.
- Turn the nut slightly and feel for smooth engagement; roughness can point to thread damage.
- Measure the tubing diameter and inspect for roughness, flattening, or ovality that may stop a proper seal.
- Pressure-test the connection at low pressure before returning to service.
Practical Fixes
When a joint seems loose, adjust it to the recommended specification. Avoid over-tightening, which can deform the ferrule.
For swaged, scored, or distorted ferrules, replace them along with the nut and fitting body if necessary. Avoid mixing ferrules and fitting bodies from different manufacturers because mismatched taper, length, or geometry can compromise the seal.
For soft tubing, install an internal insert sized to the tube so the wall is stabilized and sealing improves. In corrosive environments, switch to stainless steel fittings to extend service life.
Addressing PTFE Creep And Cold Flow
PTFE cold flow prevention requires specific strategies. Choose fittings with internal O-rings, redundant seals, or mechanically supported ferrule designs that limit creep.
Plan periodic inspections because cold flow may develop over time, even after the fitting was installed correctly. If PTFE tubing shows deformation, replace it and consider using a secondary or backup sealing method.
| Problem | Fast Check | Recommended Action |
|---|---|---|
| Weeping at nut | Nut may be loose; ferrule gap visible | Retighten carefully and replace ferrule if needed |
| Intermittent leak under pressure | Check for oval tube or bad ferrule seat | Re-cut tubing, support tube wall, and fit a new ferrule |
| Gradual seepage | Soft tubing or PTFE creep | Apply PTFE creep controls; use reinforced tubing or O-ring backup seals |
| Rough thread engagement | Rough engagement when tightening | Replace nut or fitting body; retighten to spec on new parts |
| Rust, pitting, or material breakdown | Visible rust or pitting | Change to stainless fittings and compatible ferrules |
Application Tips And Common Use Cases
Around the home, compression adapters are important for many plumbing tasks. They are used to adapt supply tubing to fixture inlets. For example, a sink supply line adapter may be needed when faucet inlets and sink supply posts use different sizes.
Residential work commonly includes sink supply lines, faucet connections, toilet hookups, and appliance connections. When replacing a tank or adding a valve, a water heater compression adapter can be useful. Choose parts rated for household water pressure and make sure the ferrule material works with the tubing.
Commercial and industrial systems usually have tougher requirements. High-pressure compression fittings may be used in industrial piping, bottled gas systems, and HVAC equipment. For demanding applications, stainless ferrules and two-piece ferrule designs can better resist creep, corrosion, and vibration.
For instrumentation and high-purity systems, fittings must minimize contamination and out-gassing. Select materials compatible with autoclave cycles and clean-room environments. Ensure the pressure ratings and traceability are met when selecting components for lab or medical equipment.
Mixing parts from different manufacturers can cause failures. Differences in ferrule taper, thread pitch, or ferrule length can prevent proper sealing. It is best to purchase fittings and ferrules from the same vendor or confirm compatibility through Installation Parts Supply or the manufacturer’s data.
When buying parts, verify product pages for exact OD, thread pitch, material, and pressure rating. That step cuts down on rework in the field. Proper selection is key to preventing leaks and extending the service life of both residential and commercial installations.
Conclusion
Compression adapters can reliably join tubing when the correct part is selected and installed properly. Knowing the main parts—nut, ferrule, and body—makes selection and installation easier. That understanding helps you match size, gender, and thread type, including parts such as a 3/8 to 1/2 converter or 1/2 female to 3/8 male adapter.
Adapter material is another critical selection factor. Brass and stainless steel are often specified for high-pressure, corrosive, or harsh chemical environments. Copper, on the other hand, is well matched for many residential applications.
Adhere to the best installation practices. Ensure square cuts and deburr the tubing. Use inserts for soft PEX or nylon tubing. Tighten according to the recommended turn count and avoid over-tightening.
For troubleshooting, check ferrule seating and thread integrity. After disassembly, replace ferrules that are deformed. For PTFE applications, consider redundant seals, backup sealing methods, or alternative materials to reduce cold-flow.
When purchasing parts, rely on trusted suppliers and detailed specifications. Installation Parts Supply recommendations can help confirm compatibility. They offer a wide range of adapters, reducers, and conversion fittings. The right parts, combined with correct installation, can reduce leaks and improve overall system reliability.
